Design
\\\" Stainless steel control dial
\\\" Bar handle

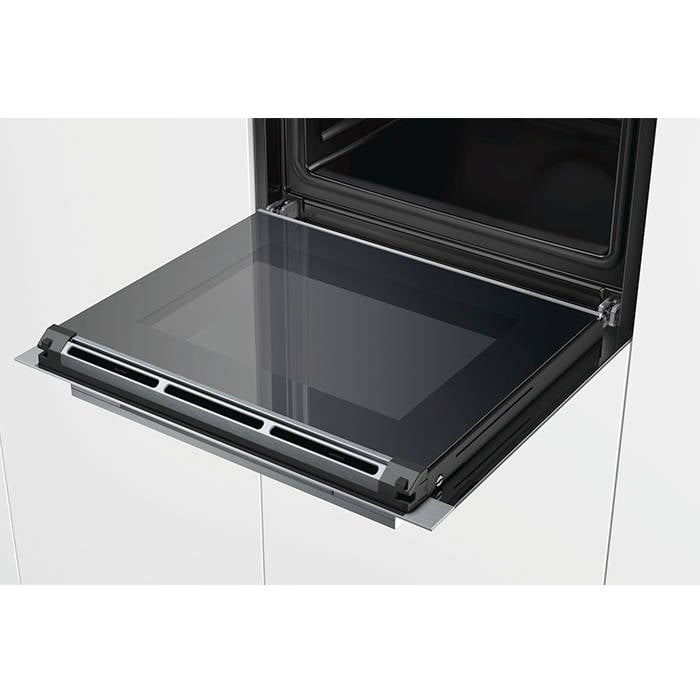

\\\" Drop down oven door, softClose, softOpen
\\\" Cavity inner surface: Enamel anthracite
Key features
\\\" activeClean cleaning

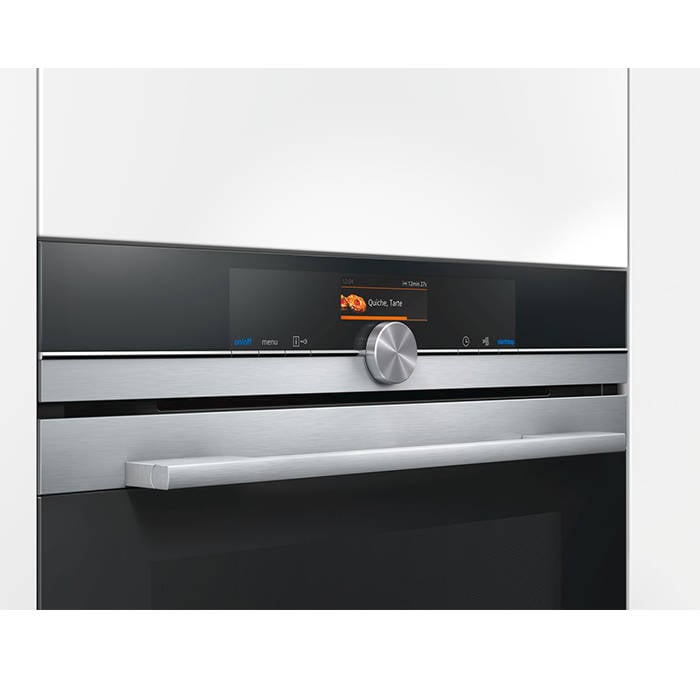

\\\" 3.7\\\" TFT touchDisplay
\\\" Drop down oven door, softClose, softOpen
\\\" TFT clearText display
\\\" Digital temperature display with proposal
Actual temperature display
Heating-up indicator
Sabbath setting
\\\" Light on/off when door opened/closed
\\\" Control panel lock
Automatic safety switch off
Residual heat indicator
start button
Door contact switch
\\\" Residual heat indicator
\\\" Control panel lock
\\\" Info button
Features
\\\" Electronic oven clock timer
\\\" Main on/off switch
\\\" Full glass inner door
\\\" 1 interior light
\\\" LED Illumination
\\\" LED Illumination
\\\" Removable wire shelf support rails

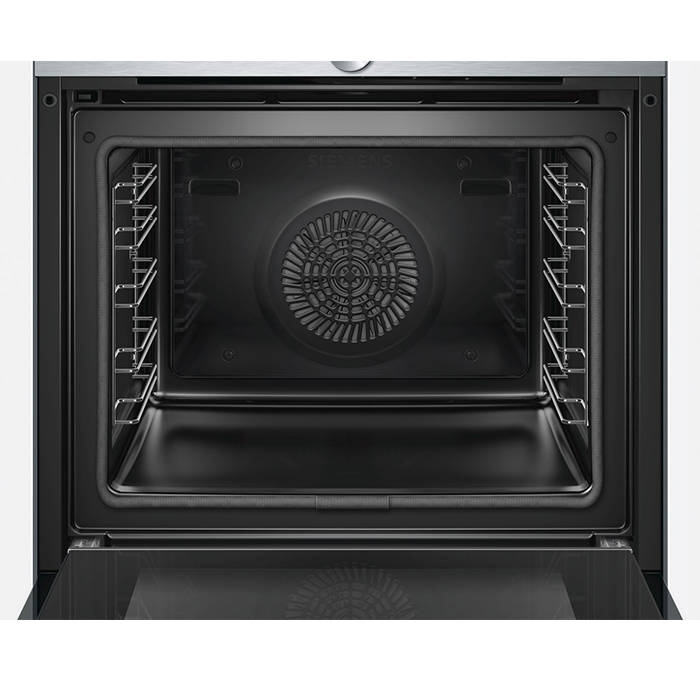

\\\" 5 shelf positions in oven
\\\" Pyrolitic proof trayholder and baking tray
\\\" Integral cooling fan
Programmes/functions
\\\" Oven with 13 heating methods:
4D hot air, hotairEco, conventional oven, Conventional heat ECO, hot air grilling, full width grill, half width grill, intensive hot air, coolStart, bottom heat, low temperature cooking, keep warm, plate warming
\\\" Fast pre-heating function
\\\" cookControl Plus
Performance/technical information
\\\" 71 litres
\\\" Stainless-steel fan
\\\" Temperature range 30 °C - 300 °C
\\\" Maximum door temperature 30 °C
\\\" Energy efficiency rating A+
\\\" Energy efficiency rating (acc. EU Nr. 65/2014):
Number of cavities: 1
Heat source: electrical
Cavity volume: 71 litres
\\\" Length of mains cable: 120 cm
\\\" Total connected load electric: 3.6 KW
\\\" Appliance dimension (hxwxd): 595 mm x 594 mm x 548 mm
\\\" Niche dimension (hxwxd): 585 mm - 595 mm x 560 mm - 568 mm x 550 mm
\\\" Please reference the built-in dimensions provided in the installation drawing
Standard accessories
\\\" 2 x combination grid, 1 x universal pan
\\\" Pull out system: Easy fit shelf support rails with electronic link
Technical Information
General
\\\" Width (mm)
594 mm
\\\" Height (mm)
595 mm
\\\" Heating Types
Bottom heat, Conventional heat, Full width grill, Half width grill, Hot Air-Eco, Hot air grilling, low temperature cooking, Pizza setting, pre-heating, warming
\\\" TFT Touchdisplay Plus
\\\" TFT Touchdisplay
\\\" TFT-Display
\\\" Home Connect
\\\" Home Connect
iService Remote, Remote Monitoring and Control
\\\" Home Connect Connectivity
Wi-Fi
\\\" Highlights
activeClean, Child-proof Lock, Fast Pre-heating function
\\\" Included accessories
2 x combination grid, 1 x universal pan
\\\" Energy efficiency
A
\\\" Power consumption standby/display on
0.9 W
\\\" Power consumption standby/display off
0.5 W
\\\" Power consumption standby/network: Please check the user manual for how to switch off the WiFi module.
3.0 W
\\\" Time auto-standby/display on
20.0 min
\\\" Time auto-standby/displ. off
20.0 min
\\\" Time auto-standby/network
20.0 min
Construction type
\\\" Color / Material Front
Stainless steel
\\\" Construction type
Built-in
\\\" Control Panel Material
Stainless steel
\\\" Type of control setting devices - cavity 1
Rotary knob
\\\" Door Material
Glass
\\\" Source of energy
Electric
\\\" Installation type
Half-integrated
\\\" Door hinge
Bottom, damped
Size and weight
\\\" Cavity width (cm)
48.0 cm
\\\" Cavity height (cm)
35.7 cm
\\\" Cavity depth (cm)
41.5 cm
\\\" Dimensions of the product (mm)
595 x 594 x 548 mm
\\\" Cut-out width
560 mm
\\\" Cut-out height (mm)
585 mm
\\\" Cut-out depth
550 mm
\\\" Depth with door open (mm)
1,040 mm
\\\" Net weight (kg)
38.0 kg
Oven
\\\" Area of largest baking sheet
1,290
\\\" Hot air temperature max. (°C)
275 °C
\\\" Max. temperature (°C)
300 °C
\\\" Product size
Large
\\\" Door temperature
30 °C
Safety
Consumption values
\\\" Max. e cons pyrol self-clean (kWh)
4.80 kWh
\\\" Min. e cons pyrol self-clean (kWh)
3.30 kWh
\\\" Energy efficiency
A
\\\" Energy consumption forced air convection (kWh) - cavity 1
0.69 kWh
Comfort
\\\" Included accessories
2 x combination grid, 1 x universal pan
\\\" Pull-out system
Accessory
\\\" Are some hobs controls integrated
Connection
\\\" Length of electrical supply cord (cm)
120 cm
\\\" Current (A)
16 A
\\\" Electrical connection rating (W)
3,600 W
\\\" Plug type
no plug
\\\" Nominal power (kW)
220-240 V
