Efficient and effective, induction hobs make a great addition to any busy household. As well as helping you to cook your food quickly and thoroughly, they also help you to keep your energy consumption to a minimum. This makes Miele induction hobs the perfect choice for anyone looking to make their home more environmentally friendly and more efficient.

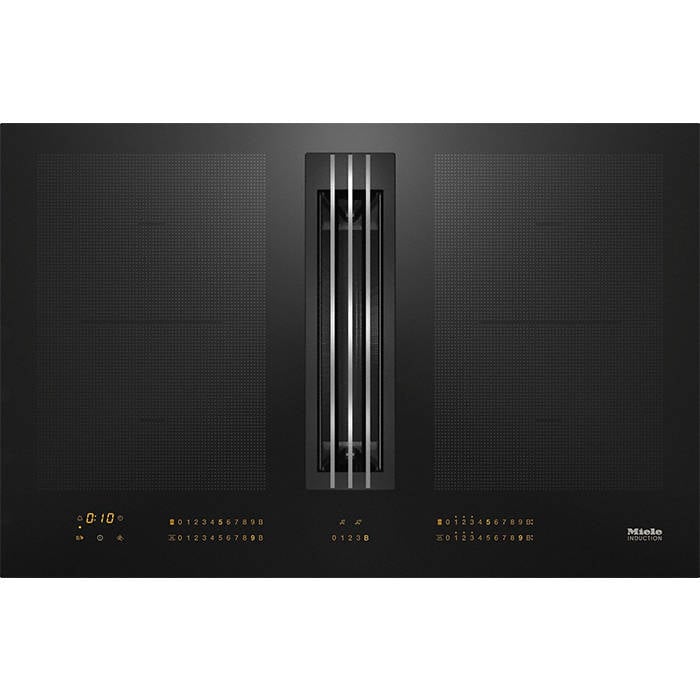

The Miele KMDA7774FL with Integrated Extractor and Two PowerFlex Zones is one of the best induction hobs around. Its four zones can each be individually controlled to give you full flexibility over your cooking.
The integrated extractor has three power levels plus a boost setting. This means you’ll be able to get rid of cooking odours easily and efficiently no matter what’s on the hob.

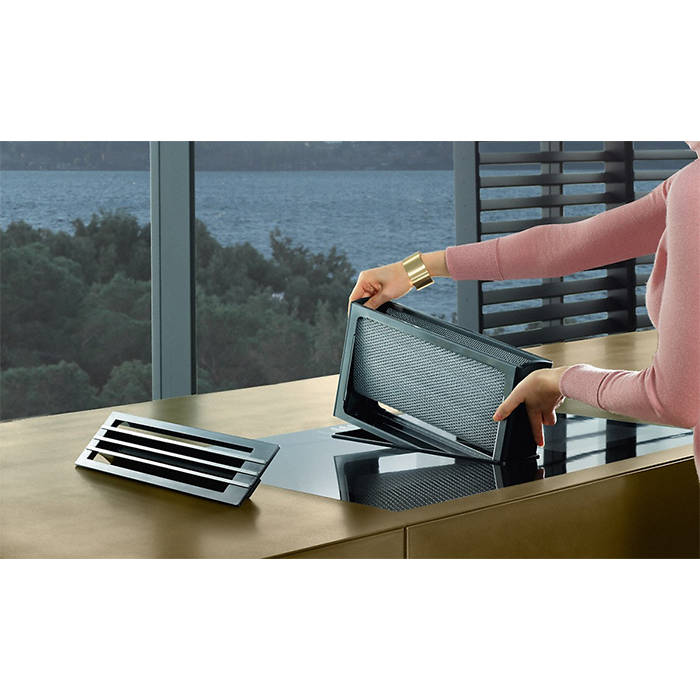

The hob is 800mm wide and comes complete with a stainless steel grease filter. It also has Con@ctivity 2.0, making it easy to integrate the appliance into your smart Miele kitchen.
Thanks to the efficient nature of Miele induction hobs, they use minimal electricity, even when turned up high. As a result, the Miele KMDA7774FL has an A+ energy rating, making it ideal for low-impact, high-convenience living.
| Construction type | |
|---|---|
| Induction hob with integrated extractor |
•
|
| Operating modes | |
| Type of air guide |
Convertible
|
| Design | |
| Ceramic surface colour |
Black
|
| Cooking zone details | |
| Number of cooking zones |
4
|
| Cooking zone | |
| Position |
Left
|
| Type |
PowerFlex
|
| Diameter in mm |
230x390
|
| Rating in W |
3400
|
| Booster in W |
4800
|
| TwinBooster in W |
7300
|
| Cooking zone | |
| Position |
right
|
| Type |
PowerFlex
|
| Diameter in mm |
230x390
|
| Rating in W |
3400
|
| Booster in W |
4800
|
| TwinBooster in W |
7300
|
| User convenience | |
| Auto heat-up |
•
|
| Power levels (number without Booster level) |
3
|
| Booster level |
•
|
| Efficiency and sustainability | |
| Energy efficiency class (A++ – E) |
A+
|
| Annual energy consumption in kWh/year |
31,2
|
| Fluid dynamic efficiency class |
A
|
| Lighting efficiency class |
-
|
| Grease filtering efficiency class |
A
|
| ECO motor |
•
|
| Cleaning convenience | |
| Easy to clean ceramic glass |
•
|
| Easy-to-clean canopy interior – CleanCover |
•
|
| Filter system | |
| Number of dishwasher safe stainless-steel grease filters (10-ply) |
1
|
| Air throughput with max. duct diameter in extraction mode | |
| Air throughput in Level 1 (m³/h) according to EN 61591 |
170
|
| Air throughput in Level 2 (m³/h) according to EN 61591 |
330
|
| Air throughput in Level 3 (m³/h) according to EN 61591 |
490
|
| Air throughput in Intensive level (m³/h) according to EN 61591 |
570
|
| Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3 |
49
|
| Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3 |
62
|
| Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-3 |
71
|
| Noise power level in Intensive setting (dB(A) re 1 pW) according to EN 60704-3 |
75
|
| Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13 |
34
|
| Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13 |
48
|
| Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13 |
56
|
| Noise pressure level in Intensive setting (dB(A) re 20 µPa) according to EN 60704-2-13 |
60
|
| Air throughput in recirculation mode | |
| Air throughput in Level 1 (m³/h) according to EN 61591 |
110
|
| Air throughput in Level 2 (m³/h) according to EN 61591 |
260
|
| Air throughput in Level 3 (m³/h) according to EN 61591 |
420
|
| Air throughput in Intensive level (m³/h) according to EN 61591 |
510
|
| Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3 |
48
|
| Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3 |
63
|
| Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-3 |
73
|
| Noise power level in Intensive setting (dB(A) re 1 pW) according to EN 60704-3 |
77
|
| Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13 |
33
|
| Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13 |
48
|
| Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13 |
58
|
| Noise pressure level in Intensive setting (dB(A) re 20 µPa) according to EN 60704-2-13 |
63
|
| Safety | |
| Safety switch-off |
•
|
| System lock |
•
|
| Fault monitoring |
•
|
| Overheating protection |
•
|
| Residual heat indicator |
•
|
| Technical data set | |
| Dimensions in mm (width) |
800
|
| Dimensions in mm (height) |
200
|
| Dimensions in mm (depth) |
520
|
| Casing height incl. connection box in mm |
200
|
| Cutout dimensions in mm (width) with surface-mounted installation |
780
|
| Cutout dimensions in mm (depth) with surface-mounted installation |
500
|
| Weight in kg |
22
|
| Total rated load in kW |
7.5
|
| Voltage in V |
230
|
| Fuse rating in A |
16
|
| Standard accessories | |
| Mains cable |
Yes
|
