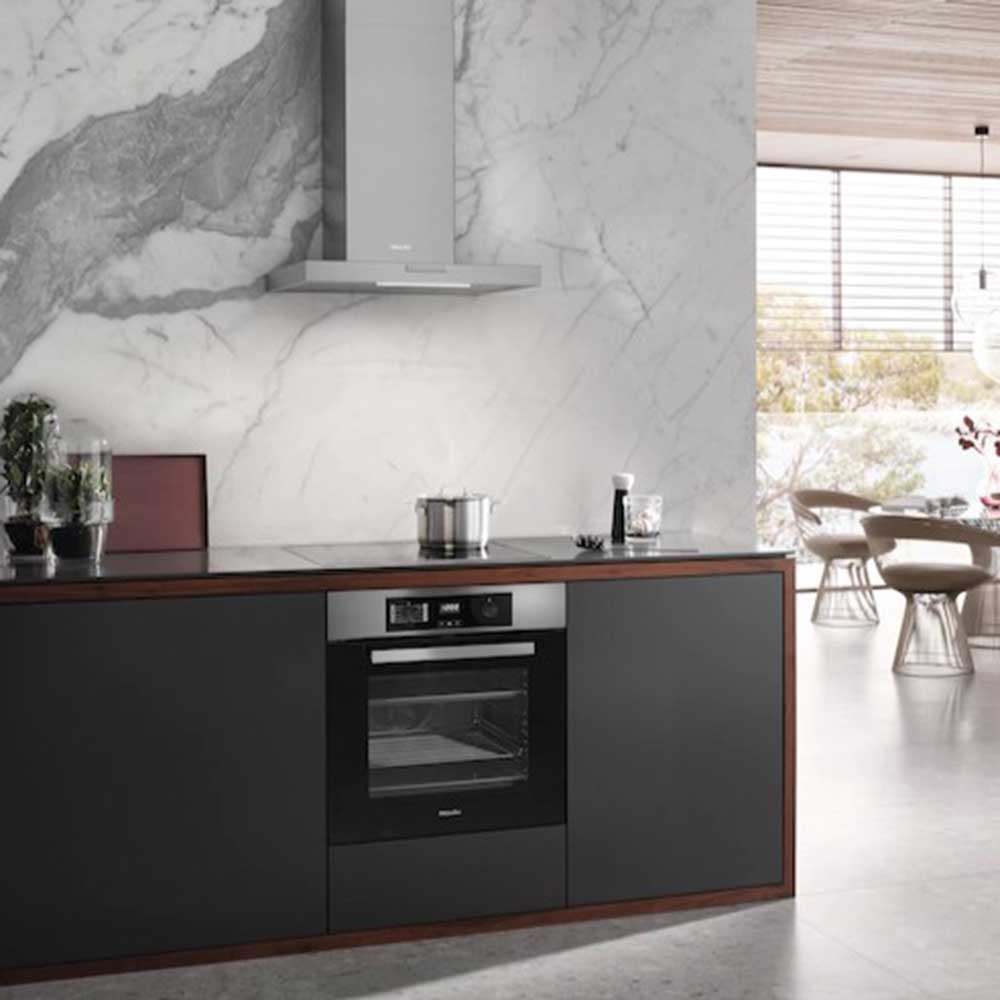

MIELE DAW 1620 Active Wall mounted cooker hood with EasySwitch pushbuttons for convenient operation
Active AirClean filter
A completely odour-free kitchen Efficient odour absorption: the disposable filter with active charcoal must be replaced regularly.
Easy to use and effective against grease
Looks great and does a good job: effective grease filtering and easy cleaning in a dishwasher. Miele cooker hoods are equipped with 10-ply stainless-steel grease filters for excellent grease removal. Built-in fall protection allows you to handle them safely and protects your hob from damage. The top layer and filter frame are made of high-quality stainless steel so that no visible discolouration occurs from being cleaned in the dishwasher and they retain their stunning appearance.
Each Miele cooker hood is unique.
Almost all Miele cooker hoods are developed at Miele’s Arnsberg plant and are, for the most part, hand-crafted. Each cooker hood is unique. Every stage of the manufacturing process involves a certain amount of manual craftsmanship: From shaping the steel to welding and polishing. The commitment of employees, their expertise, creativity and desire to excel have contributed greatly to Miele’s position in the market today.
| Wall mounted cooker hood | • |
| Type of air guide | Convertible |
| Colour | Stainless steel |
| Electronic controls | • |
| Energy efficiency class (A+++ to D) | A |
| Annual energy consumption in kWh/year | 49.90 |
| Fluid dynamic efficiency class | A |
| Lighting efficiency class | A |
| Grease filtering efficiency class | B |
| Number of dishwasher-safe stainless steel grease filters (10-ply) | 2 |
| Number x W | 1 x 3,2 W |
| Light intensity in Lx | 390 lx |
| Colour temperature in K | 3500 Kelvin |
| Dual-action blower | • |
| AC motor | • |
| Air throughput in Level 1 (m³/h) according to EN 61591 | 250 |
| Air throughput in Level 2 (m³/h) according to EN 61591 | 395 |
| Air throughput in Booster level (m³/h) according to EN 61591 | 640 |
| Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3 | 52.00 |
| Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3 | 62.00 |
| Sound power in Booster level (dB(A) re 1 pW) acc. to EN 60704-3 | 71.00 |
| Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13 | 38.00 |
| Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13 | 48.00 |
| Sound pressure in Booster level (dB(A) re 20 µPa) acc. to EN 60704-2-13 | 57.00 |
| Air throughput in Level 1 (m³/h) according to EN 61591 | 235 |
| Air throughput in Level 2 (m³/h) according to EN 61591 | 390 |
| Air throughput in Booster level (m³/h) according to EN 61591 | 620 |
| Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3 | 53.00 |
| Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3 | 64.00 |
| Sound power in Booster level (dB(A) re 1 pW) acc. to EN 60704-3 | 74.00 |
| Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13 | 39.00 |
| Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13 | 50.00 |
| Sound pressure in Booster level (dB(A) re 20 µPa) acc. to EN 60704-2-13 | 60.00 |
| 673–993 | |
| 803–1123 | |
| Overall height for vented and external in in. (mm) | 673 |
| Overall height for extraction mode and external mode cooker hoods in mm | 993 |
| Overall height for recirculation in in. (mm) | 803 |
| Overall height for recirculation mode cooker hoods in mm | 1123 |
| Canopy width in in. (mm) | 598 |
| Canopy height in in. (mm) | 50 |
| Depth of hood canopy in in. (mm) | 500 |
| Minimum height above electric hobs in mm | 450 |
| Net weight in kg | 13.40 |
| Length of supply lead in m | 1.40 |
| Standard plug fitted | • |
| Total rated load in kW | 0.25 |
| Voltage in V | 230 |
| Fuse rating in A | 10 |
| Frequency in Hz | 50 |
| Number of phases | 1 |
| Extraction ducting connection at top | • |
| Extraction connection at top and rear | • |
| Diameter of extraction ducting connection in mm | 150 |
| Telescopic chimney | • |
| 4002516657040 |
