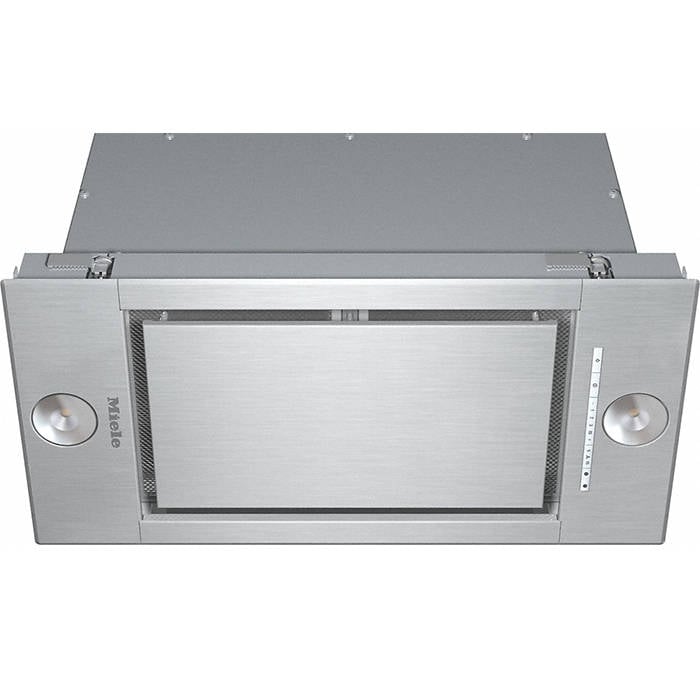

Miele DA2660 Built-in Extractor 60cm wide with LED lighting and Con@ctivity 2.0
SKU: DA2660
This product is discontinued and no longer available to purchase.
2 year manufacturer warranty
Further details can be found on our delivery information page.
Would you like our delivery team to take away and recycle your old appliance when we deliver your new one?
Need help or technical advice on a product or service? Get in touch, we’re always happy to help.
Call us on : 01603 599 599
Key Features
• Built-in Extractor • LED lighting • Con@ctivity 2.0 • 600 m3/h on boost • ECO motor • Stainless steel grease filter • 3 power levels • Run-on function • A energy rating
• Built-in Extractor
• LED lighting
• Con@ctivity 2.0
• 600 m3/h on boost
• ECO motor
• Stainless steel grease filter
• 3 power levels
• Run-on function
• A energy rating
| Construction type | |
|---|---|
| Integrated extractor |
•
|
| Design | |
| Colour |
Stainless steel
|
| Edge extraction |
•
|
| Operating modes | |
| Type of air guide |
Convertible
|
| User convenience | |
| Electronic controls |
•
|
| Light-touch switches with LED |
•
|
| Power levels (number without Booster level) |
3
|
| Booster level |
•
|
| Programmable Booster level switch-off |
•
|
| Run-on time 5 / 15 min. |
•
|
| Grease filter saturation indicator programmable |
•
|
| Active charcoal filter saturation indicator programmable |
•
|
| Cleaning convenience | |
| Easy-to-clean canopy interior – CleanCover |
•
|
| Efficiency and sustainability | |
| Energy efficiency class (A++ – E) |
A
|
| Annual energy consumption in kWh/year |
38.5
|
| Fluid dynamic efficiency class |
A
|
| Lighting efficiency class |
A
|
| PowerManagement system |
•
|
| ECO package |
•
|
| Appliance networking | |
| Miele@home |
•
|
| MobileControl |
•
|
| Automatic function Con@ctivity 2.0 |
•
|
| Filter system | |
| Number of dishwasher safe stainless-steel grease filters (10-ply) |
2
|
| Lighting | |
| LED |
•
|
| Light intensity in Lx |
480
|
| Colour temperature in K |
3,500
|
| Fan | |
| Dual-action fan |
•
|
| ECO motor (DC motor) |
•
|
| Air throughput with max. duct diameter in extraction mode (not for external version) | |
| Air throughput in Level 1 (m³/h) according to EN 61591 |
220
|
| Air throughput in Level 2 (m³/h) according to EN 61591 |
280
|
| Air throughput in Level 3 (m³/h) according to EN 61591 |
380
|
| Air throughput in Booster level (m³/h) according to EN 61591 |
600
|
| Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3 |
42
|
| Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3 |
47
|
| Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-3 |
53
|
| Sound power in Booster level (dB(A) re 1 pW) acc. to EN 60704-3 |
64
|
| Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13 |
27
|
| Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13 |
33
|
| Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13 |
39
|
| Sound power in Booster level (dB(A) re 20 µPa) acc. to EN 60704-2-13 |
50
|
| Air throughput in recirculation mode | |
| Air throughput in Level 1 (m³/h) according to EN 61591 |
150
|
| Air throughput in Level 2 (m³/h) according to EN 61591 |
250
|
| Air throughput in Level 3 (m³/h) according to EN 61591 |
330
|
| Air throughput in Booster level (m³/h) according to EN 61591 |
460
|
| Sound power in Level 1 (dB(A) re 1 pW) according to EN 60704-3 |
54
|
| Sound power in Level 2 (dB(A) re 1 pW) according to EN 60704-3 |
59
|
| Sound power in Level 3 (dB(A) re 1 pW) according to EN 60704-3 |
64
|
| Sound power in Booster level (dB(A) re 1 pW) acc. to EN 60704-3 |
73
|
| Sound pressure in Level 1 (dB(A) re 20 µPa) according to EN 60704-2-13 |
39
|
| Sound pressure in Level 2 (dB(A) re 20 µPa) according to EN 60704-2-13 |
45
|
| Sound pressure in Level 3 (dB(A) re 20 µPa) according to EN 60704-2-13 |
50
|
| Sound power in Booster level (dB(A) re 20 µPa) acc. to EN 60704-2-13 |
59
|
| Safety | |
| Safety switch-off |
•
|
| Technical data | |
| Canopy width in mm |
580
|
| Canopy height in mm |
64
|
| Canopy depth in mm |
293
|
| Minimum height above electric hobs in mm |
450
|
| Minimum height above gas hobs (max. 12.6 kW total power, burner ≤ 4.5 kW) in mm |
650
|
| Net weight in kg |
12.0
|
| Length of supply lead in m |
1.5
|
| Total rated load in kW |
0.10
|
| Voltage in V |
230
|
| Fuse rating in A |
10
|
| Number of phases |
1
|
| Installation notes | |
| Extraction ducting connection at top |
•
|
| Extraction connection at top and rear |
•
|
| Diameter of extraction ducting connection in mm |
150
|
| Standard accessories | |
| Non-return flap |
•
|
| RF Con@ctivity 2.0 communication stick for KM |
XKS 3000 Z
|
