Hama 118060 Ultra Slim Full Motion Wall Bracket for up to 65 inch TVs
SKU: HAMA118060
1 year manufacturer warranty
Further details can be found on our delivery information page.
Need help or technical advice on a product or service? Get in touch, we’re always happy to help.
Call us on : 01603 599 599
Key Features
- Wall bracket with an ultra-flat profile.
- Complete mobility in all directions
- Fits up to 65″ Televisions
- Cable manager allows you to hide wires
- Easy-Fix system for simple installation.
- Allows fully adjustable orientation of your TV

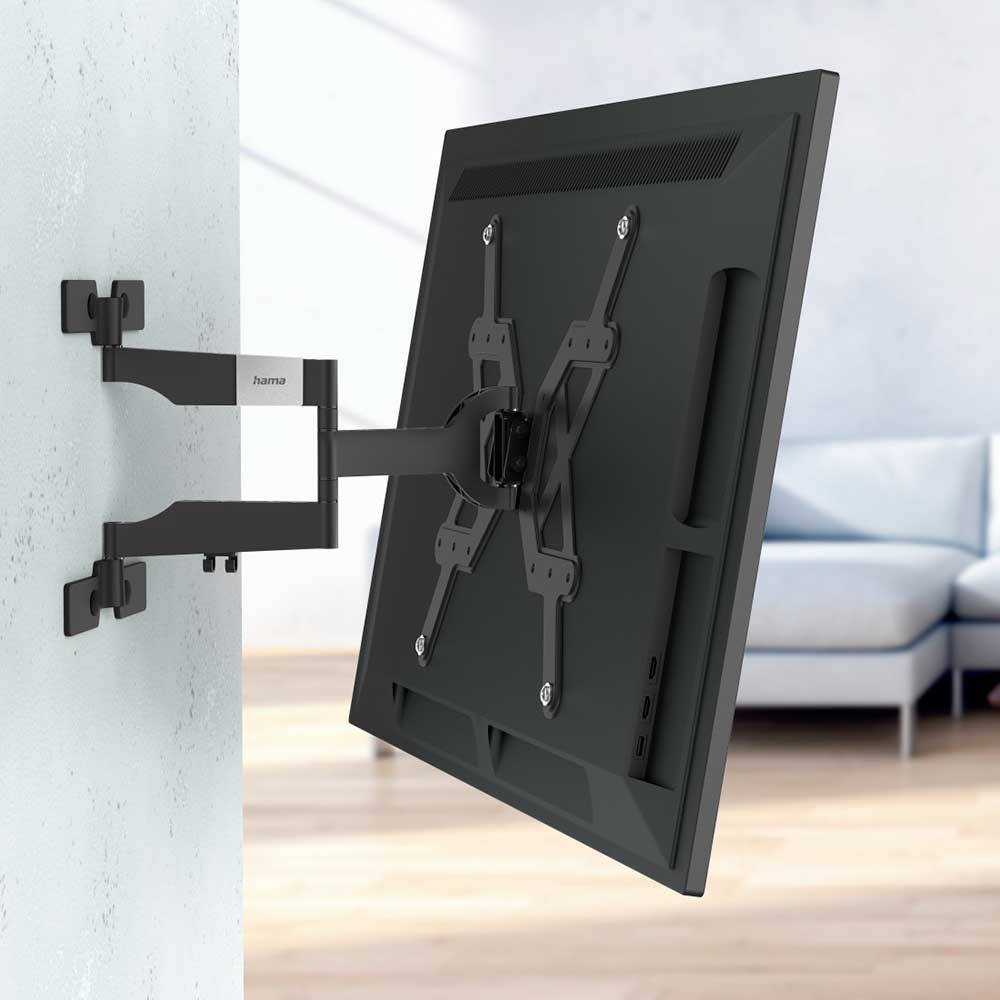

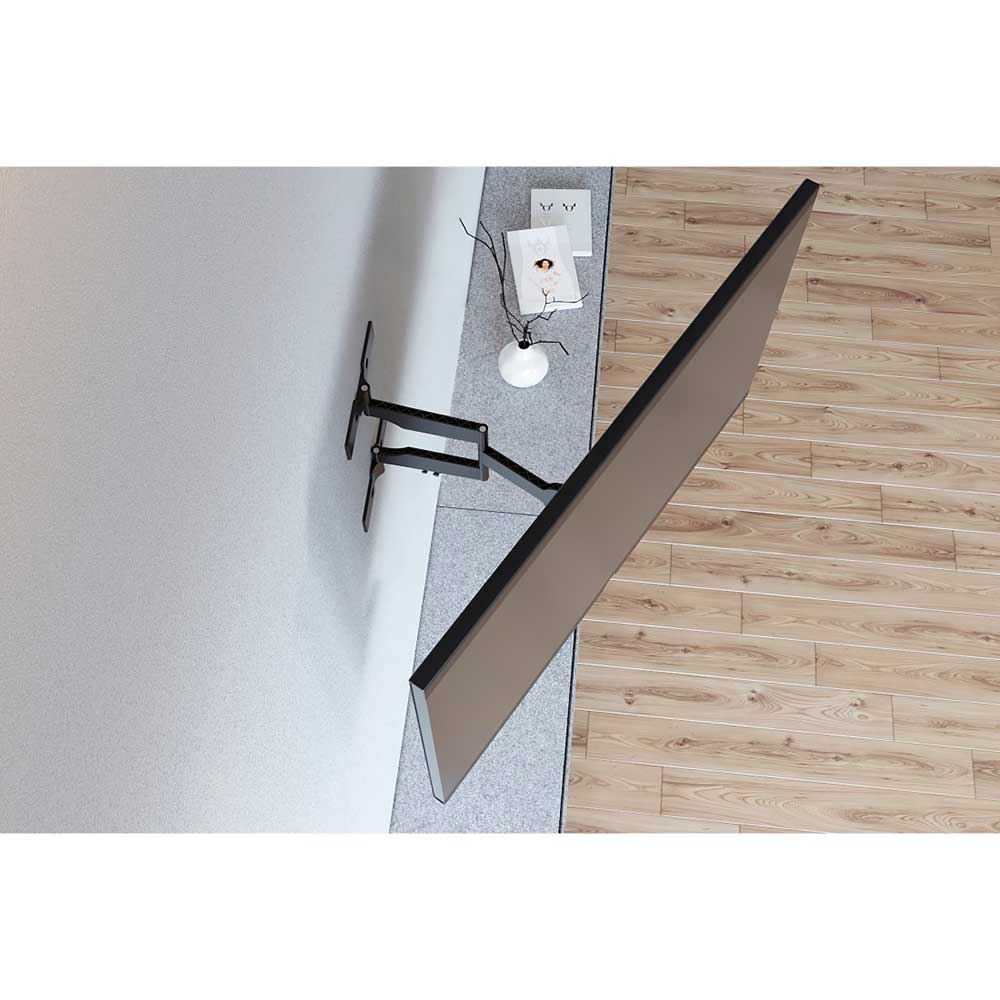

Wall mount your high-end TV perfectly with this ultra-flat yet fully mobile wall bracket which turns your TV into a picture. Its eye-catching technology and well-thought-out design will allow your TV to mount discreetly on the wall in your home.

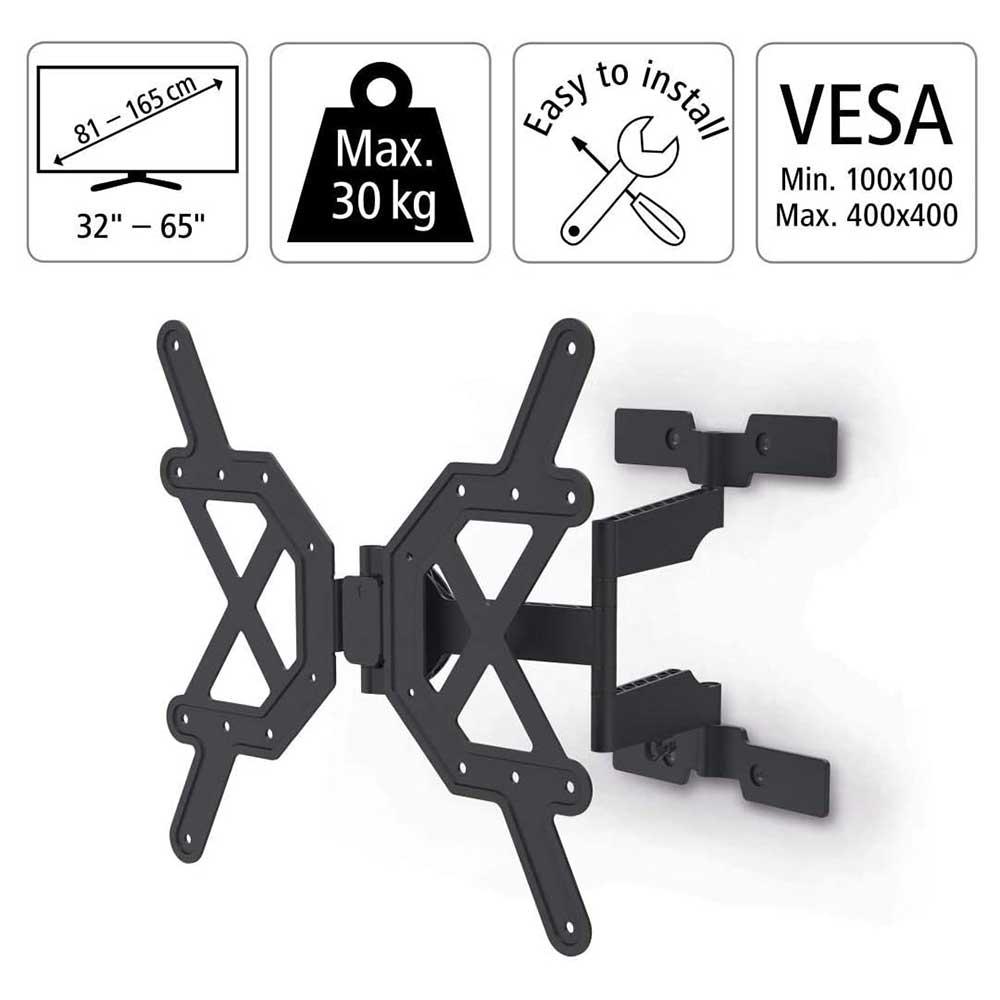

For the installation of flat-screen TVs with a screen size from 81 to 165 cm (32″ to 65″)
Ultra-flat bracket with a distance of just 25 mm from the wall
Thanks to the innovative design, the wall bracket is virtually invisible when folded together
Especially suitable for ultra-flat OLED TVs
Exceptionally convenient and space-saving for optimal positioning of the flat screen in every room
Up to +/-6° continuous tilt

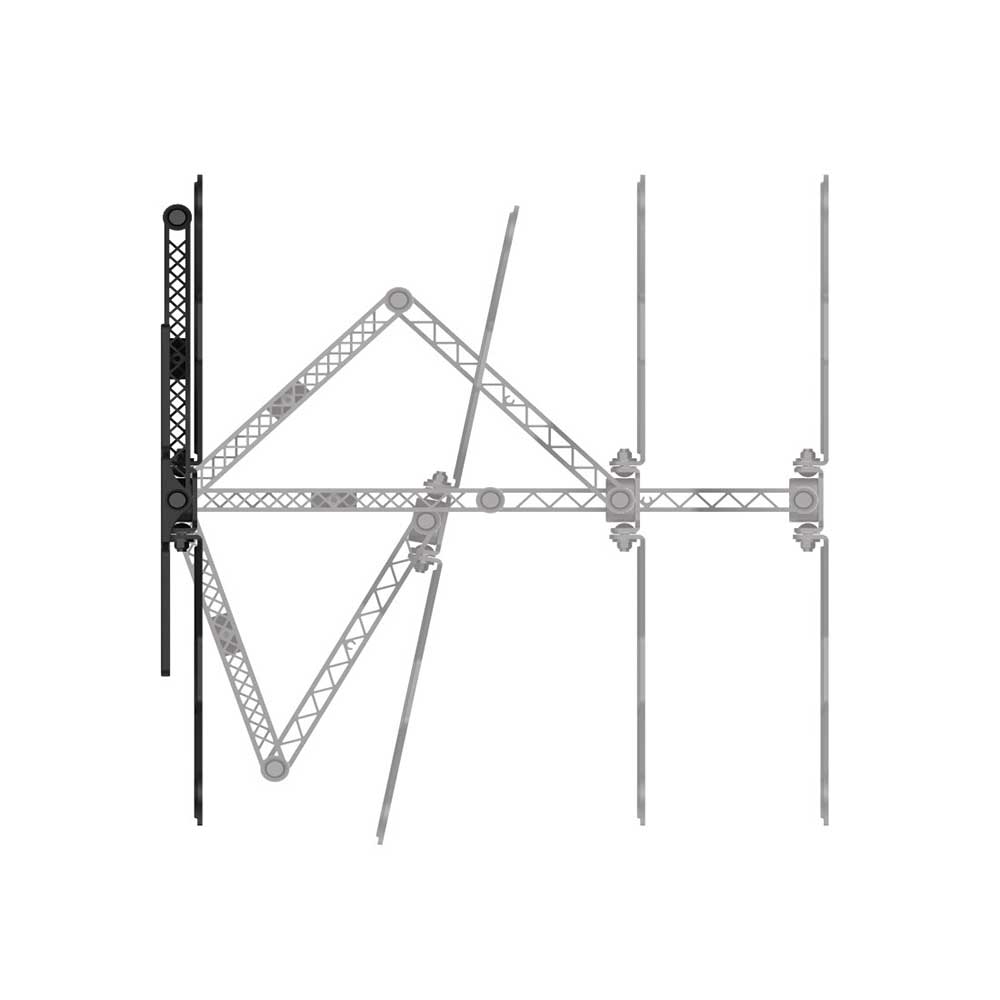

Swivel range on 3 hinges: up to 180°
When installing the drilling template allows easy marking of the drill holes without having to hold the bracket up against the wall.
What’s in the Box
- 1 Full Motion 118060 TV wall bracket

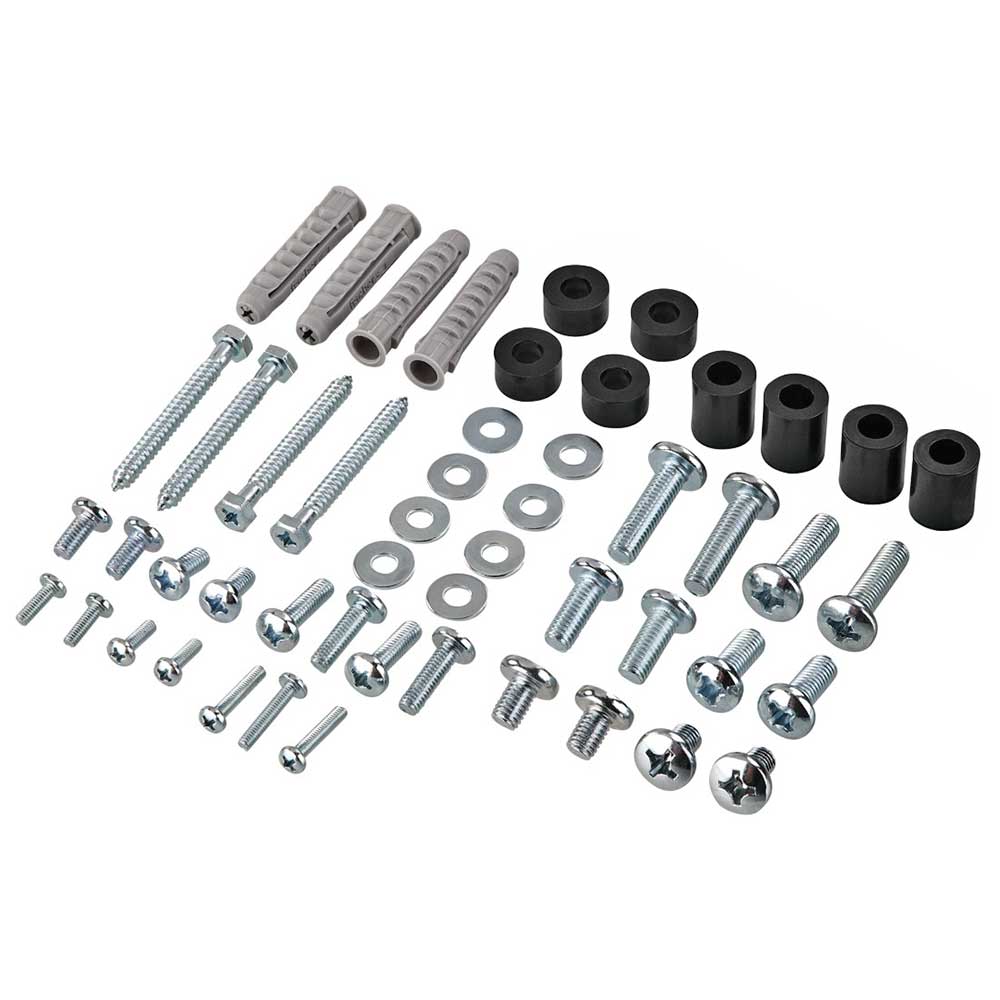

- Installation material incl. Fischer plugs
- 1 spirit level
- 1 installation guide
Design (Colour, Pattern, Motif, Series)
Colour Black
Product Division HiFi, TV & Home Cinema
Shade of colour Black
Field of Application
Recommended Maximum Screen Size 165 cm (65")
Recommended Minimum Screen Size 80 cm (32")
Recommended Screen Size 81 - 165 cm (32"- 65")
Suitable for TV
Version Swivelling/Tilting

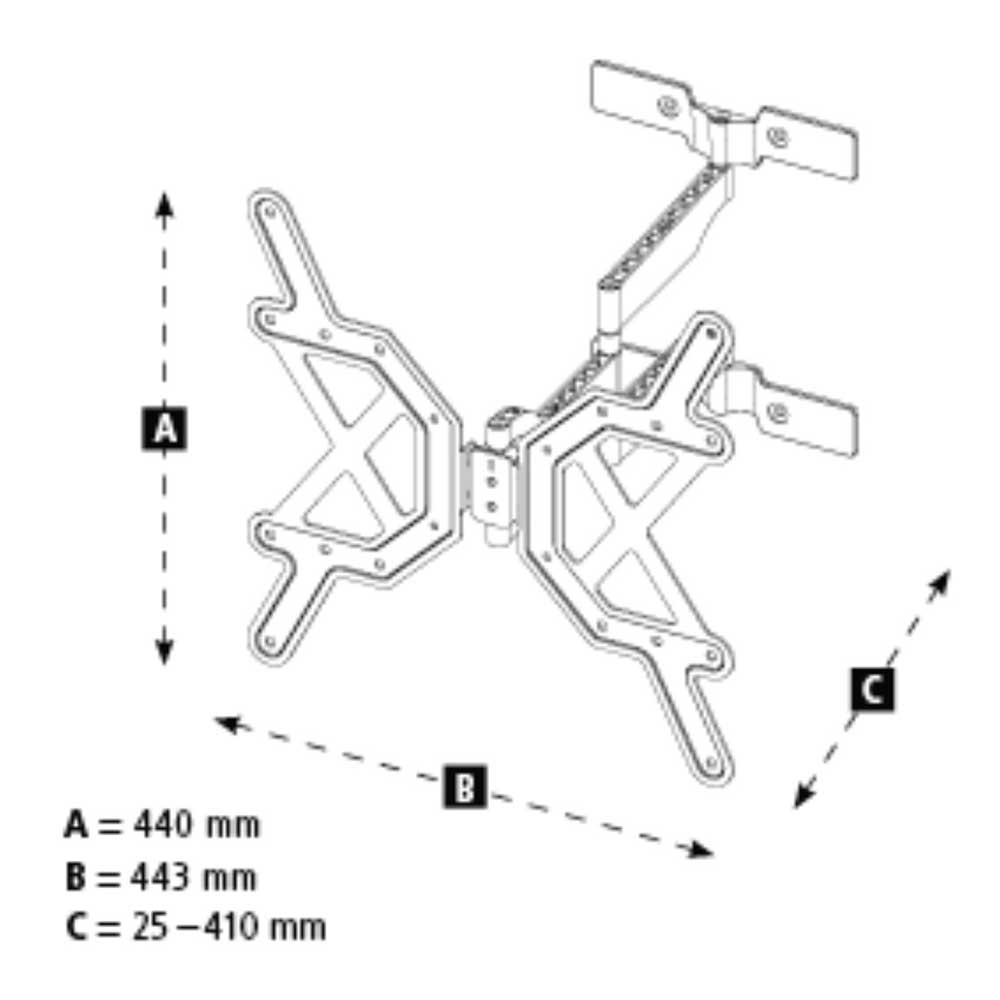

Size & Weight
External Dimension (Height) 44 cm
External Dimension (Width) 44.3 cm
Mounting Plate (Length) 30.1 cm
Mounting Plate (Width) 24 cm
Screen Dimensions
102 cm (40"), 104 cm (41"), 107 cm (42"), 109 cm (43"), 112 cm (44"), 114 cm (45"), 117 cm (46"), 119 cm (47"), 122 cm (48"), 123 cm (49"), 127 cm (50"), 129 cm (51"), 132 cm (52"), 137 cm (54"), 140 cm (55"), 142 cm (56"), 147 cm (58"), 152 cm (60"), 163 cm (64"), 165 cm (65"), 80 cm (32"), 84 cm (33"), 86 cm (34"), 89 cm (35"), 91 cm (36"), 94 cm (37"), 97 cm (38"), 99 cm (39")
VESA (from-to) 100x100 - 400x400
VESA Standard 100 x 100, 200 x 200, 300 x 200, 400 x 200, 400 x 300, 400 x 400 mm
Physical Properties
Additional Functions Cablemanager
Hole Size Attachment Up to M8
Material Aluminium, Plastic Material, Steel
Maximum Load Capacity 30 kg
Model TV
Number of Joints 3
Projection maximum 41 cm
Projection minimum 2.5 cm
Rotation 6 °
Special Feature Drilling template/Spirit level integrated
Swivel Range 180 °
Tilt +/- 6 / 6 °
