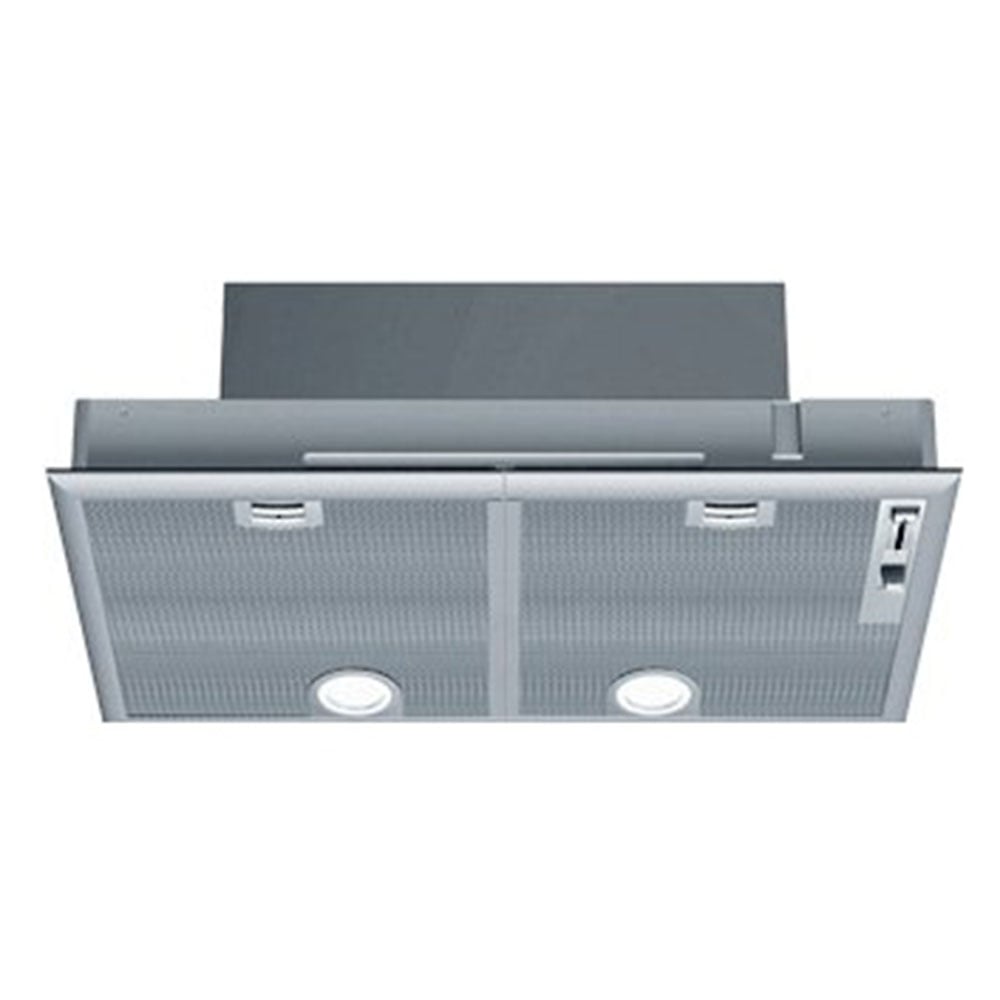

Siemens LB75564GB 75cm Canopy hood

SKU: LB75564GB

Siemens
Discontinued

This product is discontinued and no longer available to purchase.

Warranty 2 Years

2 year manufacturer warranty

Standard Delivery We will contact you by phone to confirm your order within 24 Hours

Further details can be found on our delivery information page.

Help & Advice Speak to our experts today

Need help or technical advice on a product or service? Get in touch, we’re always happy to help.

Call us on : 01603 599 599

Key Features

  • Width: 75 cm
  • Recirculation (carbon filter sold separately)
  • Extraction (kit sold separately)
  • Max airflow rate: 430 m³/h
  • Noise level: 61 dB(A)

Banish annoying odours, steam and grease with the Siemens LB75564GB Canopy Hood. There are 3 power levels which ensure that clean air is circulated when cooking. For added convenience, the extraction rate can be increased with the intensive setting for those stubborn smells.

The 2 metal grease filter cassettes make the appliance easy to maintain. These are designed to be taken out with ease so that they can be washed, helping the hood to perform at its best.
Plus, the 20W halogen lights cast light over your hob so you can monitor food. You can also benefit from these lights because they are low energy and last for a long time.

Benefits of the Siemens LB75564GB Canopy Hood
The slide switch gives you control over the speed settings and lights
Offers energy efficient lighting
An extraction rate of 640 m³ per hour allows grease to be removed quickly from your kitchen
Ducted extraction and recirculation
Kitchen smells are reduced

Product Specification
PRODUCT
Type Canopy Hood
Brand Siemens
Model LB75564GB
PRODUCT DESCRIPTION
Suitable for ducted or re-circulated extraction
Metal grease filter with an aluminium trim
Twin motor
3 speed control plus intensive setting
2 x 20 W halogen lights
Sliding switch control
Extraction rate according to DIN/EN 61591 ø 15 cm: max. Normal 390 m³/h Intensive 640 m³/h
Sound level according to DIN/EN 60704-2-13: 59 dB (re1pW) on max. Normal 400 m³/h
Total connected load 240 W.
For installation in a modified cupboard, above a hob
TECHNICAL DATA
Color body Silver metallic
Material body Lacquered
Installation typology Built-in into the cabinet
Operating Mode Convertible
Connection Rating (W) 240
Voltage (V) 220-240
Frequency (Hz) 50
Approval certificates VDE, CE
Length electrical supply cord (m) 130.0
Plug type GB plug
Required niche size for installation (HxWxD) 255 x 350
Dimensions of the product, with chimney (if exists) (mm) 255 x 730 x 380
Dimensions of the packed product (HxWxD) (mm) 290 x 790 x 440
Net weight (kg) 9.00
Gross weight (kg) 11.00
Type of control mechanical
Type of manual control devices Slide switch
Number of motors (Stck) 2
Total power of the motors (W) 200
Number of speed settings 3-stage + intensive
Boost position
Maximum output air extraction (m3/h) 400
Boost position air extraction (m3/h) 650
Maximum output recirculating air (m3/h) 320
Boost position output recirculating (m3/h) 430
Light Control Type on/off
Number of lights (Stck) 2
Type of lamps used Halogen
Total power of the lamps (W) 40
Total luminance (lux) 360
Noise level (dB (A) re 1 pW) 59
Diameter of air outlet (mm) 120 / 150
No-return airflow flap
Grease filter material Metal grease filter
Grease filter type Multilayer cassette
Optional accessories LZ73050, LZ74020
GUARANTEE
2 years parts and labour, 2nd year subject to registration within 30 days of delivery
