Display Panel 4K ULTRA HD/OLED
Bright Panel Ultra Bright Panel
Screen Resolution 3,840 (W) x 2,160 (H)
Panel Drive OLED Superb Motion Drive
Picture Mode Dynamic/Normal/Cinema/True Cinema/THX 4K (Cinema/Bright Room)/Custom/Professional1/Professional2 (isfccc)
Muti HDR Support Y (HDR10/HLG)
HDR Brightness Enhancer Y
Contrast Ultimate Contrast
Colour Space Wide Colour Spectrum
Studio Colour HCX2 Processor Y
Local Dimming -
Adaptive Backlight Dimming -
THX Certified Display*1 Y
4K Pure Direct Y
isf Mode Y
3D LUT Setting -
3D -
Sound Quality Surround VR-Audio True Surround+
Speakers Squaker x 2, Woofer x 2, Quad Passive Radiator
Speaker Output 40 W (10 W x 2 + 10 W x 2)
Sound Mode Standard/Music/Ambience/User
Smart Features my Home Screen Y (2.0)
Info Frame Y
Voice Assistant Voice Assistant Y
Voice Guidance Y
EPG Y
On Screen Display Menu Languages English
Twin HD Tuner Y

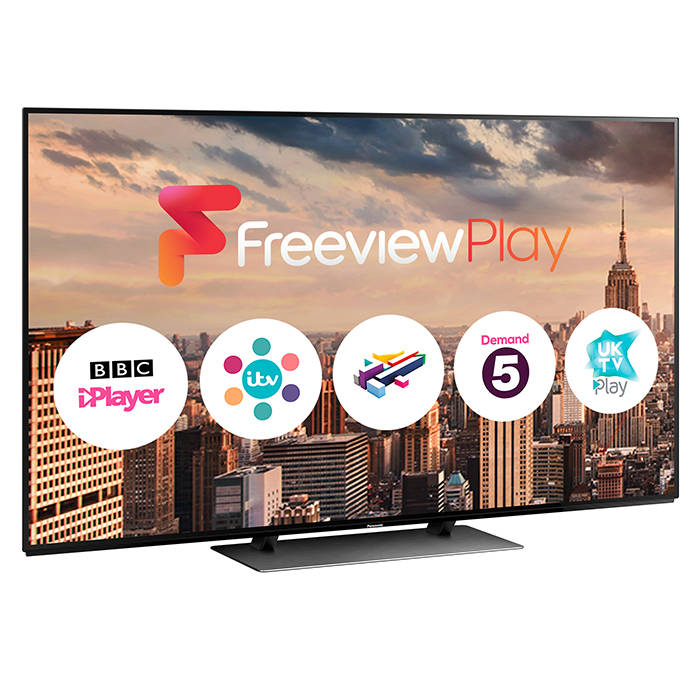

FreeviewPlay Y w/ Quick look guide
Freesat Y
Unique Processing Engine Quad-Core Pro
Wireless LAN Built-in Y
Panasonic Media Center (App) Y
Panasonic TV Remote Apps Panasonic TV Remote Apps Y
Swipe & Share Y
Smart Calibration Y
Internet Apps Internet Apps Y
Web Browser*2 Y
Easy Mirroring Y
DLNA*3 Y (DTCP-IP/DMP/DMR/DMS)
Bluetooth*4 Y (Keyboard/Mouse)
IP Home Control (Crestron/Control4) Y
Media Player Media Player Y (2.0)*5
Support Format AVCHD/Progressive, AVI/HEVC/MKV/WMV/MP4/M4v/FLV/3GPP/VRO/VOB/TS/PS, MP3/AAC/WMA Pro/FLAC/Apple Lossless/WAV, JPEG
Teletext Reception 2000P
USB-HDD Recording (w/ Rewind live TV) Y
Multi Window 2T PAP/PIP/PAT
Hotel Mode Y
Game Mode Y
HDAVI Control Y
Energy Data Suppliers Trademark Panasonic
Model ID TX-55EZ952B
Energy Efficiency Class B (tentative)
Power Supply AC 220 - 240 V, 50/60 Hz
Screen Resolution 3,840 (W) x 2,160 (H)
Ambient Sensor (CATS) Y
Design Design Concept Art & Interior
Terminal Digital Tuner Reception DVB-T/T2/DVB-S2
Analogue Tuner Y
HDMI HDMI*8 2 (side), 2 (rear)
HDMI (4K 60/50p with HDCP2.2) 4
Support Feature Audio Return Channel (Input 2)
USB 3 (1 side, 2 rear; USB 3.0 x 1, USB 2.0 x 2)
LAN Port 1
CI (Common Interface) 1 (CI Plus, Version 1.3)
SD Card Y
Scart Connector -
Component Video Input shared with Composite RCA phono type x 1 (side)
Digital Audio Output (Optical) 1 (rear)
Headphone Output 1 (side)
GENERAL Included Accessory*9 Touch Pad Remote / TV Remote
Dimensions (W x H x D) (w/o stand) 1230 x 716 x 48 mm
Weight (w/o stand) 17.5 kg
Dimensions (W x H x D) (with stand)*10 1230 x 766 x 275 mm
Weight (with stand) 24.5 kg
VESA Compatible Y
VESA Dimension 400 x 300 mm
Outer Boxed Unit (W x H x D) 1647 x 825 x 255 mm
Total Boxed Weight 34.0 kg
NOTE *1 THX and the THX logo are trademarks of THX Ltd. which are registered in some jurisdictions. The THX 3D logo is a trademark of THX Ltd. All rights reserved.
NOTE *2 The Web Browser cannot display some web pages correctly. And viewable contents by VIERA Web Browser are subject to the following conditions;
NOTE - viewable contents may vary depend on models,
NOTE - viewable contents may differ from those for PC,
NOTE - viewable contents may be limited.
NOTE *3 DLNA, the DLNA Logo and DLNA CERTIFIED are trademarks, service marks, or certification marks of the Digital Living Network Alliance.
NOTE *4 HID (Human Interface Device Profile) compliant keyboards are available. The Bluetooth® word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Panasonic Corporation is under license.
NOTE *5 To playback HDR, a HDR source is required (H.264 or H.265(ST2084 or HLG format)).
NOTE *6 Based on IEC 62087 Ed.2 measurement method.
NOTE *7 Energy consumption XYZ kWh per year, based on the power consumption of the television operating 4 hours per day for 365 days. The actual energy consumption will depend on how the television is used.
NOTE *8 The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing, LLC in the United States and other countries.
NOTE *9 Not all the accessories are listed here.
NOTE *10 Dimension with recommended pedestal style.
